A Brief Introduction to CPVC Fire Sprinkler Installation

A Brief Introduction to CPVC Fire Sprinkler Installation

Blazemaster CPVC  |  fire safety  | on

How do you Install a Fire Sprinkler System with BlazeMaster CPVC?

Whether part of a new residential fire sprinkler system or replacing old or damaged heads, sprinkler head effectiveness and reliability often come down to proper installation of fire sprinklers.

Why BlazeMaster CPVC?

BlazeMaster® CPVC pipes and fittings are easy to work with and allow for flexibility during the CPVC pipe installation process.

  • Simple to use
  • Lightweight
  • Easy to cut and fabricate
  • Versatile
  • Flexible
  • Safe

Our team of fire system experts have put together a general overview on how to properly install fire sprinkler heads with BlazeMaster® CPVC.

It is important to note that the following are general guidelines. BlazeMaster Fire Sprinkler Systems advises contractors to review manufacturer instructions as well as national fire protection association guidelines and BIS codes of practice before installation.

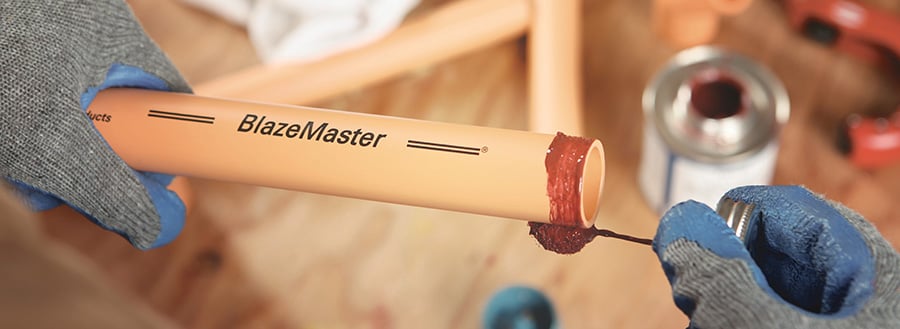

IMG_CMYK_8809 copy1. Attach the Sprinkler Head Adapter

In a BlazeMaster CPVC fire sprinkler system, sprinkler heads are attached to the system using an approved or listed solvent cement. A medium amount of solvent cement should be applied to the inside of the adapter and exterior of the adjoining pipe.

Push the adapter in place while giving it a quarter turn to ensure even solvent cement application. Allow the adapter the proper amount of time to set and cure. The force of turning the sprinkler head in place can damage a joint that hasn’t been properly cured.

Check the solvent cement manufacturer’s label for proper set and cure times based on environmental conditions.

Always attach the adapter before inserting the sprinkler head. This helps to avoid wet solvent cement dripping into the sprinkler head and clogging the opening.

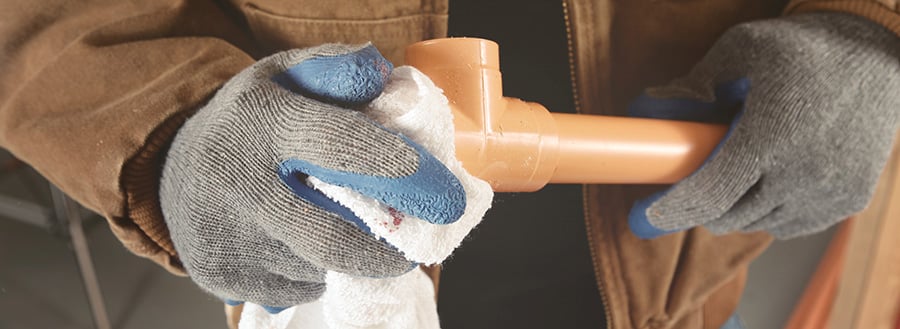

IMG_CMYK_8882 copy-1

2. Prepare the Sprinkler Head

Examine the sprinkler head outlet threads to ensure they are clean and free of anything that can disrupt the seal or damage the gasket. This may include sealant, paint and/or tape.

Once inspected, if needed, apply a compatible thread tape sealant to the outlet’s connecting threads. TFE thread tape is the recommended sealant for CPVC connections. This sealant creates a watertight seal, preventing leaks and maintaining system pressure.

DO NOT use a combination of tape and thread sealant on the same joint.

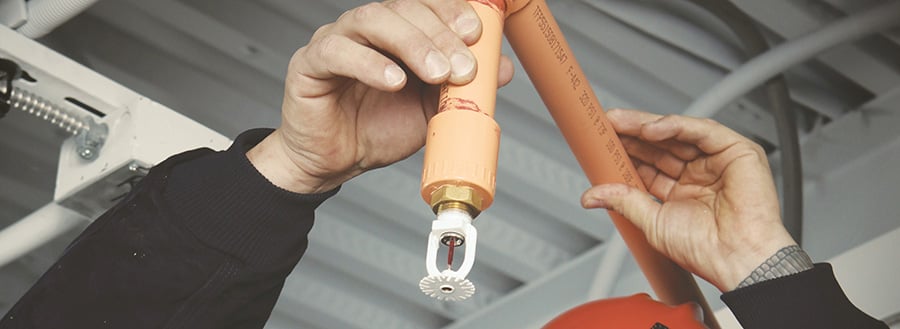

IMG_CMYK_9381 copy3. Insert the Sprinkler Head, Tighten and Align

Insert the sprinkler head into the adapter socket and hand tighten in place. Next, take an open-ended or sprinkler head wrench and give a maximum of one to two full turns until the head is properly aligned with the covered area.

Over torquing the sprinkler head can damage and even crack the adapter, rendering it useless.

After all the sprinkler heads have been installed, you can pressurize the system and inspect all the sprinkler heads to ensure leak free installation.

Additional Fire Sprinkler Installation Resources

For more information or questions about installing sprinkler heads into BlazeMaster CPVC systems, check out our installation guide.
